LED FILM
SCREEN

Strength factory provides customized Color and Shape solution.

A completely transparent screen. We provide and support the customization of film screens of any shape and any degree of curvature.

Contact Us

+
BASIC PARAMETERS
P10
P16
P20

Physical point spacing

10mm

Average power consumption <240W/㎡

LED package

SMD2121

Maximum power consumption

<700W/㎡

Box size

960mm*320mm

Best viewing distance

2.5M~50M

Module resolution

96W)*32(H)

Viewing angle

(H)160°/(V)160°

Screen resolution

10000 dots/㎡

Power supply mode

AC220V

Contrast

3000:1

Working voltage

DC4.2V-5V

LED lamp beads

Huacaiwei

Environment temperature

-20℃~+60℃

Scanning method

1S

Relative humidity

10%-95%

White balance brightness

≥5000cd/㎡

Maintenance method

Before and after maintenance

Refresh frequency

≥1920Hz

LED life

>500,000 hours

Gray scale

14bit

Installation method

fixed or hoisted

Color temperature

5500K-9300K

Protection grade IP20

Physical point spacing

16mm

Average power consumption<240W/㎡

LED package

SMD2121

Maximum power consumption

<700W/㎡

Box size

960mm*256mm

Best viewing distance

3M~50M

Module resolution

60W)*16(H)

Viewing angle

(H)160°/(V)160°

Screen resolution

3906/㎡

Power supply mode

AC220V

Contrast

3000:1

Working voltage

DC4.2V-5V

LED lamp beads

Huacaiwei

Environment temperature

-20℃~+60℃

Scanning method

1S

Relative humidity

10%-95%

White balance brightness

≥2500cd/㎡

Maintenance method

Before and after maintenance

Refresh frequency

≥1920Hz

LED life

>500,000 hours

Gray scale

14bit

Installation method

fixed or hoisted

Color temperature

5500K-9300K

Protection grade IP20

Physical point spacing

20mm

Average power consumption

<240W/㎡

LED package

SMD2121

Maximum power consumption

<700W/㎡

Box size

960mm*320mm

Best viewing distance

30M~150M

Module resolution

96W)*32(H)

Viewing angle

(H)160°/(V)160°

Screen resolution

2500 points/㎡

Power supply mode

AC220V

Contrast

3000:1

Working voltage

DC4.2V-5V

LED lamp beads

Huacaiwei

Environment temperature

-20℃~+60℃

Scanning method

1S

Relative humidity

10%-95%

White balance brightness

≥2000cd/㎡

Maintenance method

Before and after maintenance

Refresh frequency

≥1920Hz

LED life

>500,000 hours

Gray scale

14bit

Installation method

fixed or hoisted

Color temperature

5500K-9300K

Protection grade IP20

Transparent & Full-color

3840Hz refresh & 16bit Grey grade. Full-color display, a high degree of true color
reproduction for vivid displaying effect.

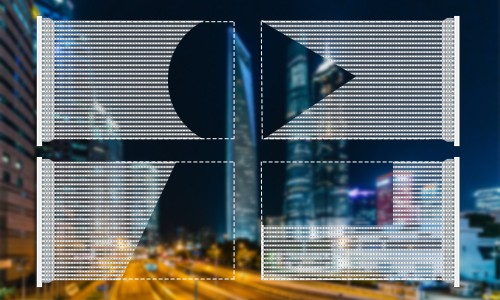

Support Arbitrary Cropping

According to the required size, it can be cut into different shapes and sizes without
affecting the display effect.

Creative Customized

Free curving & No frame. It can meet the design requirements of different sites
bendable, and fit the curved building curtain wall. The Best solution for special-shape
customization.

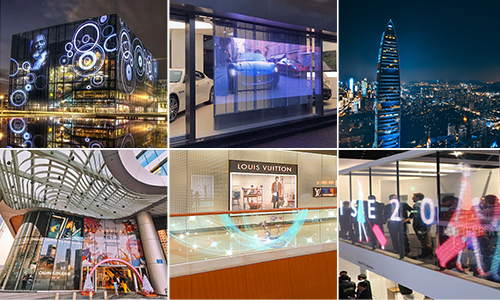

Application

We not only provides high-quality products, but also provides customized solutions to
serve every customer with heart.

1. LED film screens are widely used in radio and television, transportation, monitoring,
schools, media, government, finance, telecommunications and other industries.

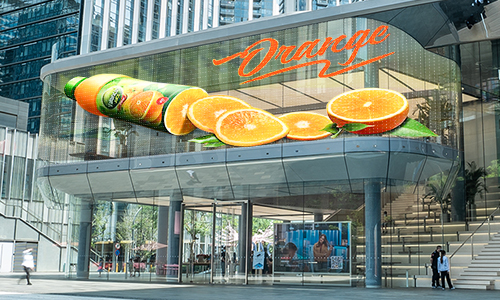

2. Glass curtain wall, glass window, commercial building, stage venue.
3. Jewelry shop, 4S shop, luxury goods industry, shopping mall building.
